Web pages: What can you see in a single fixation?

A fundamental constraint on performance in any visual task is the information available at a glance. Searching for a person in a natural scene will be more difficult if we cannot detect them at a glance. Being able to at least extract target-relevant features at a glance will speed up search; otherwise, we may have to execute a number of eye movements to find the target. Our ability to quickly get the gist of a scene can also speed up search if it provides layout information, identifying likely locations to find a person.

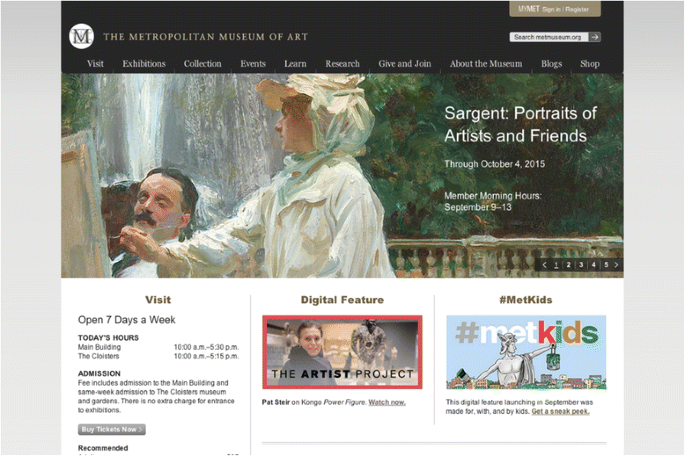

In the context of navigating a web page (e.g., see Fig. 1), clearly much of the pertinent information comes in the form of text that may not be readable at a glance. However, if a user can quickly determine that a web page is a blog, and thus, say, an unreliable source of information about drug interactions, she can quickly navigate to another page. (Of course, in viewing a page of search results, a savvy user might also realize that a given link points to a blog based on its URL. However this cue might not always be so readily available.) To the extent that a user can determine the layout of the page at a glance, she can easily direct her attention to a paragraph of interest, click on a button relevant to her goals, or look through the menu for more choices. At the other extreme, if the user cannot get much information out of a page at a glance, she may be forced to read a significant amount of the text, or otherwise scan the page, a slow and perhaps frustrating process. The user may decide simply to navigate to a new page that is more easily comprehensible – an undesirable outcome from the point of view of the page designer, the owner of the page, and any companies with ads on that page. Understanding the information available at a glance constrains models of perception, visual representation, and attention, and informs our understanding of usability and design.

A considerable amount of information about a stimulus, such as a scene or display, is available in a single fixation. This summary information has been termed the “gist.” Colloquially, the gist is defined as “the sentence one uses to describe a stimulus.” Often this is operationalized as “the perceived contents of a scene given a certain amount of viewing time” (Fei-Fei, Iyer, Koch, & Perona, 2007), often in a single fixation (Fei-Fei et al., 2007; Oliva, 2005). We take the gist to mean the information available at a glance, i.e., in a single fixation. Such a fixation can last between 100 and 300 milliseconds (ms) (Harris, Hainline, Abramov, Lemerise, & Camenzuli, 1988; Pieters & Wedel, 2012; Wedel & Pieters, 2000), while typical fixations fall in the range of 200–250 ms (Rayner & Castelhano, 2007).

At a glance, participants can identify the category of a natural scene (e.g., beach vs. forest, indoor vs. outdoor, parking lot vs. downtown) (Ehinger & Rosenholtz, 2016; Greene & Oliva, 2009b; Joubert, Rousselet, Fize, & Fabre-Thorpe, 2007; Rousselet, Joubert, & Fabre-Thorpe, 2005), and how much room there is to navigate (Greene & Oliva, 2009a). They can determine whether a given object is present, such as an animal (Kirchner & Thorpe, 2006; Li, VanRullen, Koch, & Perona, 2002; Thorpe, Fize, & Marlot, 1996), vehicle (VanRullen & Thorpe, 2001), or a human face (Crouzet, Kirchner, & Thorpe, 2010). They can reliably distinguish between cities (e.g., Paris vs. Los Angeles) and tell what kind of intersection lies ahead (Ehinger & Rosenholtz, 2016). Furthermore, experiments in which participants freely report what they perceived in the scene, as opposed to merely carrying out a pre-defined task, have revealed the richness of the perception of lower and mid-level properties, such as the colors and textures present (Fei-Fei et al., 2007).

In addition to the extensive research on natural scenes, much of vision research has (effectively) studied vision at a glance using artificial, psychophysics-style stimuli (e.g., Gabors, simple 2D/3D shapes, synthetic textures, etc.). Many experiments studying basic visual abilities use short display times, typically only long enough for a single fixation. This includes studies of texture segmentation (Julesz, 1981; Rosenholtz & Wagemans, 2014; Treisman, 1985), popout search (Treisman & Sato, 1990), crowding (Levi, 2008), ensemble/set perception (Whitney, Haberman, & Sweeny, 2014), numerosity judgments (Feigenson, Dehaene, & Spelke, 2004), dual-task performance (VanRullen, Reddy, & Koch, 2004), iconic memory (Sperling, 1960), and perceptual organization in general (Wagemans, 2015). Experimenters use short display times not only to explicitly study at-a-glance perception; but also to study preattentive processing, or avoid complicating factors, such as fixation location. Human vision research, however, rarely extends this work to information visualizations, computer displays, and user interfaces; all of which have scene-like qualities and are practically relevant, despite being artificially designed. The goal of our research is to bridge this gap between natural and artificial stimuli by studying at a glance perception of web pages.

Research on human vision arguably suggests that perception of artificial stimuli is poorer than that of natural scenes. Synthetic stimuli and tasks appear to be more affected by attentional limitations than natural stimuli and tasks (Li et al., 2002). Researchers have suggested several explanations for this apparent difference. Our visual systems developed to process natural stimuli (Geisler, 2008). There appear to be brain areas devoted to processing stimuli like natural scenes (Epstein & Kanwisher, 1998); this specificity of neural organization possibly provides an advantage in processing those natural stimuli (VanRullen et al., 2004). In addition, web pages are often quite text-heavy; much of this text is unlikely to be readable at a glance, perhaps further impairing ability to classify a web page at a glance. One obviously cannot generalize from extracting the gist of a natural scene or of psychophysics-style stimuli to the gist of diversely designed artifacts such as web pages. Given their novelty and pervasiveness, web pages are “real-world” stimuli that require rigorous psychophysical investigation.

Beyond contributing to theories of human vision, understanding web page gist is relevant for design and usability. We can learn from web pages that are easy to comprehend at a glance in order to improve easy access to relevant information. For this reason, researchers in the HCI (Human-Computer Interaction) community have begun to study perception of web pages at a glance. However, to our knowledge all of these studies involved subjective judgments, e.g., “is this web page aesthetically pleasing,” or “does this web page appear to have high or low usability?” Researchers have found that participants form subjective impressions of the appeal of a web page in the first 50 ms of viewing, and respond consistently when shown the same stimulus later (Lindgaard, Fernandes, Dudek, & Brown, 2006). Furthermore, first impressions of visual appeal based on short (50 ms) exposures correlate well with judgments based upon longer viewing times (500 ms and further up to 10 s) (Tractinsky, Cokhavi, Kirschenbaum, & Sharfi, 2006). Users also make consistent subjective ratings about the trustworthiness and perceived usability of web pages after only 50 ms of viewing (Lindgaard, Dudek, Sen, Sumegi, & Noonan, 2011). Inspired by human vision research (see Oliva & Torralba, 2006) that suggests that low spatial frequencies are sufficient to communicate the layout of a natural scene, Thielsch & Hirschfeld (2010, 2012) found high correlation between judgments of aesthetics made on low-pass filtered web page screenshots and the original web page screenshots. Perceived usability, on the other hand, correlated better with judgments made based on high-pass filtered stimuli. Of course, just because observers can consistently make certain subjective judgments at a glance does not imply that they will be able to perform the tasks of interest in this paper. Instead of studying subjective judgments, we ask observers to perform objective tasks with web pages at a glance.

We perform several experiments to investigate what can be seen in a single fixation, 120 ms, on a web page. Display times of this magnitude are typical for similar studies with natural scenes (Fei-Fei et al., 2007). In Experiment 1, we ask whether observers can rapidly ascertain the category of a web page. This is a new question in the human vision literature. Common wisdom in HCI suggests that a user cannot acquire much semantic information, such as the category of a web page or meaning of any text, in a presentation time of less than 500 ms (e.g., Lindgaard et al., 2006). However, researchers have not actually tested this hypothesis.

In Experiment 2, we ask whether ads are detectable at a glance. This is an object detection task like the animal/no-animal task in scene perception studies (Kirchner & Thorpe, 2006; Li et al., 2002; Thorpe et al., 1996). However, since detection depends greatly on both the signal to be detected and on the background against which it appears, one cannot infer from easy animal detection that ads will be easy to detect. In particular, designers may use multiple different strategies for ad design. Some designs aim for ads to have a salient, visually distinct appearance from the rest of the web page, while other designs might disguise the ad on purpose, effectively creating camouflaged objects. In previous work, Pieters & Wedel, (2012) showed that observers can distinguish between ads and editorial articles in magazines with high accuracy (up to 85% on average) in only 100 ms. Furthermore, observers could discriminate between types of ads (i.e., for cars, financial services, food, or skincare products), at rates of 95% correct for “typical” ads, and 53% correct for “atypical” ads. This study differs from the present in several ways. We study ads embedded in web pages, as opposed to isolated full-page magazine ads. The task is to detect these embedded ads, rather than to categorize them. In addition, the ad style in magazines tends to be quite different from that in web pages.

Finally, in Experiment 3, we ask how well a user can locate the menu bar. A menu bar is essentially defined by the horizontal or vertical alignment of its elements; menu items form either a row or a column, respectively (Fig. 10). In addition, many menu bars contain menu items that have similar colors and other features, and/or those items may be contained within a rectangular box. As a result, one can think of menu localization as an initial question of what perceptual organization (alignment, similarity, and/or containment) one can perceive at a glance at a web page. Considerable work has demonstrated that observers can perform perceptual organization tasks in brief presentations (van der Helm, 2014). However, much of this work uses fairly simple and homogeneous displays, leaving open the question of what observers can perceive in web pages at a glance. Perhaps more relevant is work suggesting that observers can estimate the 3D layout of a natural scene at a glance (Greene & Oliva, 2009a, 2009b), though clearly both the task and stimuli differ greatly from detecting a web page menu.

Our particular set of tasks can be thought of as a parallel to tasks in the scene gist literature. We have a semantic task (categorization), similar to scene categorization (Biederman, 1981); an object detection task (ad detection), similar to object detection with scenes (Thorpe et al., 1996), and a layout-related task (menu localization), similar to 3D layout estimation (Oliva & Torralba, 2001). Can observers assess these mid-to-high level properties in web pages, as they can in natural scenes?

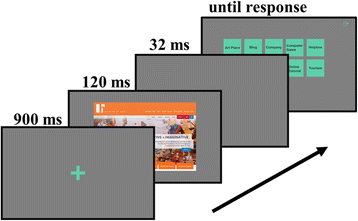

Observers viewed stimuli on a Dell E2209W LCD monitor (47.5 cm by 30 cm viewable area, 1680 × 1050 resolution) with their eyes approximately 55 cm from the center of the screen. Stimulus presentation and response collection was done using PsychToolbox-3 (Kleiner et al., 2007) in MATLAB.

In all experiments, observers responded by using the mouse to click on-screen buttons, and received no feedback. The order of presentation was randomized for each observer. Stimuli were screen shots of web pages, or modified versions thereof, as described below. Stimuli were displayed at their original 1200 × 800 resolution, and subtended an area of the screen approximately 33.75 cm × 22.5 cm (34 × 23 degrees visual angle). In other words, all web pages were displayed at the same size and resolution used to capture the screenshot, and viewed at a typical viewing distance for browsing the web. Nearly all of the text in the original screenshots was legible to any observer with normal or corrected-to-normal vision at the experimental viewing distance, with the only exceptions being (rarely) poorly rendered text, or essentially “footnote” or other unimportant text – e.g., disclaimers or trademark symbols.

In order to rigorously study at-a-glance web page categorization, we need properly labeled web pages. One way to get labels is to do a categorization experiment with unlimited viewing time. In other words, we need to collect a corpus of web pages, define a set of unambiguous category labels, and confirm that observers agree on the ground truth labeling of those web pages’ categories.

Was some of the web page text at least partially readable? Did reading text help observers determine the category? A common assumption in HCI design is that text is not readable at a glance (Lindgaard et al., 2006). Research in human vision, however, suggests that participants could plausibly have read some of the text. Humans can read at least 12 words per second (83.3 ms per word) when presented foveally, one after another (Potter, 1984). Humans can also read words presented peripherally for short times, provided that both the font and the spacing between letters is large enough (Latham & Whitaker, 1996). If the spacing is insufficient, a phenomenon known as crowding strongly limits peripheral reading (Pelli & Tillman, 2008), and limits it far more than a lack of acuity (Rosenholtz, 2016). In addition, the participants need not literally read the text for it to be useful; they need only infer that words look more like words that would appear on, say, an art site than on a helpline page.

In order to test the hypothesis that observers are using text to classify web pages at a glance, we changed the text on a set of web pages to be unreadable. We then measured to what degree categorization performance degraded. If observers do not read any text at a glance, performance should be unaffected. On the other hand, if participants can read some of the text, there should be a significant effect of performance.

Scrambling web page text

Previous work has used a number of techniques to render text unreadable, e.g., on a web page, including “Greeking” text (Tullis, 1998) or converting it into a language that our participant population is unable to read, such as Finnish. We chose instead to use image operations to flip the text about a horizontal axis, i.e., flip (using minimal bounding boxes around words). This enabled us to change all text, including text embedded in images, while minimally affecting font and layout of the page.

We used custom software developed by two undergraduate students (https://projectnaptha.com/) that uses the Stroke Width Transform (Epshtein, Eyal, Yonatan, Ofek, & Wexler, 2010) and connected-components analysis to detect letters in an image, and then vertically flips the bounding box for each letter. While very accurate, this process did miss some of the text, and occasionally flipped regions with no text. An author manually checked each scrambled screenshot, and inverted any text that was still readable, using image-editing software to manually select the minimal bounding box, and vertically flip it. The experimenter also restored any significantly large image regions that were mistakenly flipped by the algorithm. See Fig. 5 for an example of a screenshot with scrambled text. One can see that some text, such as the word “College” remains fairly readable even with this manipulation; this experiment should, if anything, underestimate the degree to which participants can use text to categorize a page at a glance.

Results

As in Experiment 1A, we aggregated the responses from all participants and computed confusion matrices (Fig. 6). As with intact (unscrambled) web pages, performance averaged over subject was well above chance (M = 43%, SD = 3.7 pp., p < 1E-5, chance = 10%). Each subject’s performance was well above chance (p < 1E-5 per subject, chance = 10%). Furthermore, performance in each category was also well above chance (p < 1E-5 per category, chance = 10%) when averaged across subjects. The mean and standard deviation of performance per category (in units of pp) over subjects is reported in Table 2.

Importantly, we found that scrambling the text significantly decreased performance by 4.34% (p < 4E-4, collapsing over all subjects and categories); the categorization task is more difficult when the text is unreadable. This implies that participants in Experiment 1A were in fact inferring the category in part from readable text. Since performance in the scrambled condition was well above chance, however, readable text was clearly not the only cue. Further examining the individual web page categories, we found that performance was significantly better with intact than scrambled text for three categories: company (15.5 pp), news (22.14 pp), and society (11.62 pp) (p < 5E-3 per category, see Table 2 for standard deviation). Thus, readable text provided a better cue for some categories than for others; we examine this finding in more detail in the discussion.

It is possible that some visual processing occurs after the stimulus is removed, due to afterimages or iconic memory, despite the appearance of the response screen. This would effectively increase the stimulus display time, beyond the length of a typical fixation. To control for this possibility, we ran an experiment identical to Experiment 1A, except that immediately after each web page image, a noise mask appeared. The mask was made by taking a random web page from the unused subset of the original 714, transforming the image into the Fourier domain, randomizing the phase, and using the inverse Fourier transform to convert back to the image domain. The mask thus had the same spatial frequency content and color distribution as a real web page, but random phase.

In addition to perceiving the category of a real world scene, observers can also extract sufficient information at a glance to recognize a few objects (Fei-Fei et al., 2007; Oliva, 2005). Can participants also recognize elements of a web page at a glance? Advertising is one interesting and ubiquitous type of web content. Web pages often display ads to generate revenue, and advertisers in many cases want users to click on these ads. As a result, designers of both web pages and ads take care in setting the location and style of an ad to maximize the chances that a visitor will click on the ad. Users, on the other hand, may desire not to click on irrelevant ads, or perhaps learn to ignore ads completely. This might lead advertisers to use various techniques to “trick” users into clicking on the ad, for example when advertisers try to combat “banner blindness” (Benway, 1997).

In Experiment 2, we ask whether participants could detect the presence of an ad embedded in a web page at a glance.

The same 10 participants in Experiment 1B completed this experiment in a separate session.

Results

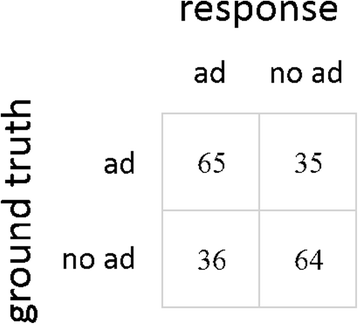

The results are shown in Fig. 7. The row indicates the ground truth, and the column represents the response. Thus, for example, the top right quadrant indicates missed ads. Participants responded “ad” and “no ad” with roughly equal frequency. 8 of the 10 participants performed above chance (p < 0.03, chance = 50%), and the average performance collapsing over all subjects (M = 64.7%, SD = 7.4) was also well above chance (p < 1E-5). Thus, participants usually noticed ads within a single glance, much as previous studies have suggested that participants can easily notice an animal in a natural scene (Thorpe, Gegenfurtner, Fabre-Thorpe, & Bülthoff, 2001).

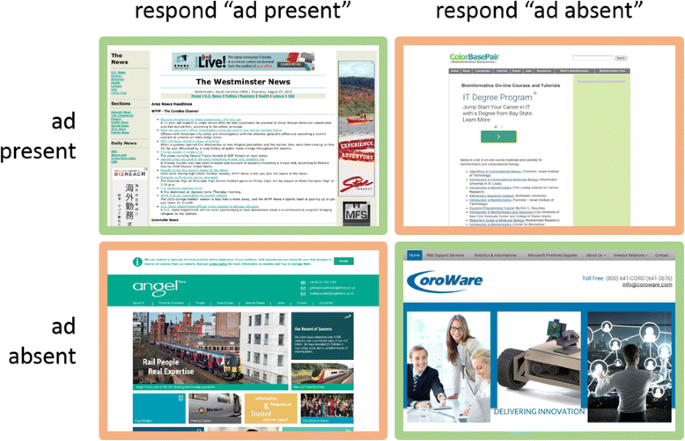

It is informative to examine some examples of correctly and incorrectly identified ad-present and ad-absent web pages from Experiment 2. The top right example in Fig. 8, for which only 1 of 10 participants detected the ad, has an ad that may be disguised as a style element. It is a text-based ad, where the text formatting is similar in style to that of the main content of the page. This is in contrast with the page in top left of Fig. 8 where ad is separate from the other visual groups on the page. Interestingly, in the bottom left example, 7 out of 10 readily respond “ad present,” even though an ad is not present.

A natural question to ask is whether users perceive the layout of a web page at a glance. For example, can they perceive columns and rows of text, and how different components are grouped? Can they tell apart interactive elements from purely aesthetic or informational ones? It is important to study perception of layout in web pages, because layout is an important factor in determining usability (Palmer, 2002).

Menus are vital for the effective use of a web page; beyond displaying the web page’s organization, the location of the menu suggests where to start looking for information on a page, and the status of the menu (e.g., the active item vs inactive items) helps the user place the content of a web page into context. For instance, an active menu item may indicate to the user that the visible content is what the user should focus on. Users’ fixations are often directed to the menu of a web page (Shrestha, Lenz, Chaparro, & Owens, 2007). Moreover, a menu’s content can suggest the purpose of the web page.

A designer can explicitly segment the menu from the rest of the page by using a different colored box, or implicitly by using other Gestalt grouping techniques. A menu bar is essentially defined by the alignment – either horizontal or vertical – of its elements (see Fig. 10). Thus, one can think of menu localization as one aspect of perceptual organization done at a glance with web pages.

Prior work suggests that perceptual organization is fast, but many of the studies involve simple stimuli with at most a small number of “groups” to detect (e.g., a single segmentation boundary). Is perceptual organization also fast in web pages, where multiple grouping cues might interact to define the menu area? To answer this question, we asked whether participants could tell where the menu bar was in a single fixation.

Results

Performance was high on this task (M = 84.6%, SD = 7.1), and each subject was significantly above chance (p < 1E-5 per subject, chance = 50%). The confusion matrix of responses is shown in Fig. 9. For example stimuli, see Fig. 10.

A single fixation provides enough information to find the menu for many designs. Given that the “hit” and “false alarm” rates for each menu location are similar, it is unlikely that the participants were biased towards responding that the menu was in either location. It is perhaps not surprising that performance on this task significantly exceeds that on the ad discrimination task (M = 19.9 pp., SD = 10 pp. over subjects, p < 1E-4 over all subjects and trials), as users and designers share the goal of easy page navigation, whereas their goals may be different when it comes to identifying ads.

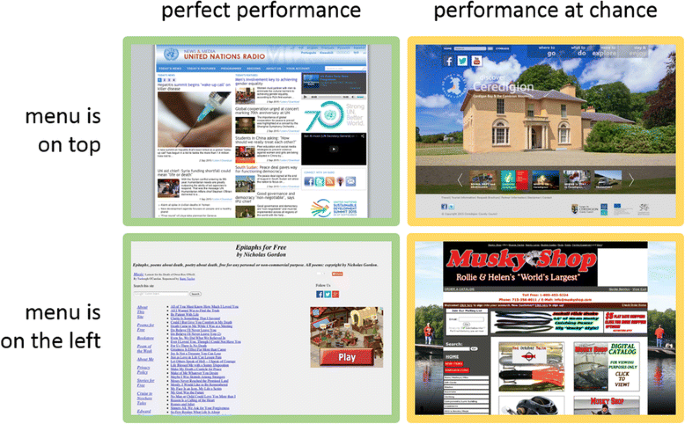

Here, we compare some examples of web pages that had low and high performance, for both menu locations, from Experiment 3. The top left example in Fig. 10 has a grid layout grouped by color at the top, and lacks any menu-like items at the very left, suggesting a more obvious menu location. The bottom left example shows a menu clearly separated from the rest of the links. In the examples with poor performance, the menu may be confused with the other graphical elements.

We have demonstrated that in a single 120 ms fixation, participants can quickly categorize a web page into one of the ten common categories. Furthermore, it seems that participants are, at least in part, using text in the web pages to do the task. Future work should probe the role of text further, and ask whether participants mainly use text near the point of fixation, or whether they can read (or at least infer category from) bigger text that appears more peripherally. Clearly, however, the content of text is not the whole story; the bulk of the performance is driven by other cues, which most likely include text quantity and font, page layout, organization, and presence and content of images, among other factors. Our current work does not delineate the relative contribution of these cues, and thus a formal investigation of them is an important direction of future work. Furthermore, participants can discriminate pages that contain ads from those that do not, as well as localize elements of the layout, namely the menu bar. Ad detection is more difficult than menu localization, possibly resulting from designers’ different purposes for the two elements. Further research is needed to pin down which menu or ad styles are more visible than others, and why.

These results speak to the capabilities of the human visual system. Both recognizing scenes and recognizing web pages presumably result from similar processes that bring together extraction of a general-purpose visual representation with higher-level inference informed by previous experience. The general-purpose representation likely developed for ecologically important tasks like scene perception, but also likely supports understanding of web pages, in part because design develops to make use of existing visual processing architecture in the human visual system.

While much work has been done to study the perception of natural scenes at a glance, our study shows the importance of extending it to design research. Beyond providing the first quantitative study of rapid web page perception, we challenge previous assumptions about what can and cannot be perceived in a glance at a web page. Furthermore, researching web page perception is timely; as we become more enmeshed in the virtual world, more of our “natural vision” will be filled with artificial displays like web pages. Our expectation is that research on at-a-glance perception of digital displays and designs will become more prevalent and applicable as digital interfaces become more pervasive in daily life.

Our results also touch on practical issues. If a user clicks on a link in a web page, and the first glance or two does not suggest the correct category, she may quickly leave the page to find another one. For a well-designed page, viewing the URL at the top of the page would be far less efficient for classifying the page than getting the gist at a glance. Designers could improve existing applications by, for example, displaying text to be easily readable at a glance and suggestive of the web page’s category, or by including an easily comprehensible image that better cues the category. In working to improve their design, they could also use our technique of rapid presentation coupled with an objective categorization task to test the placement of their menus, ads, and graphical elements. While we do not test usability directly, we argue that having a quickly comprehendible web page would promote overall ease of use. This logic potentially extends to mobile devices: one can consider the first viewport of a mobile page (before scrolling) to be analogous to the first glance of a web page.

One could ask many other interesting questions about web page perception at-a-glance. What other elements can users quickly identify? How much layout information do users get at a glance? What design elements underlie the ability to accurately categorize a page, identify an ad, or find a menu? Are there computational models that can predict the results from objective tasks like ours? How does web page perception depend on the viewer’s age, experience, or visual impairment? Our hope is, beyond presenting our specific experimental results, to understand perception of designed, real-world stimuli using the rich experimental paradigms of vision science.
